Key Features
- Uniform 100mm aluminium frame for robust structural performance
- Two frame options: Non Thermally Broken and Thermally Broken

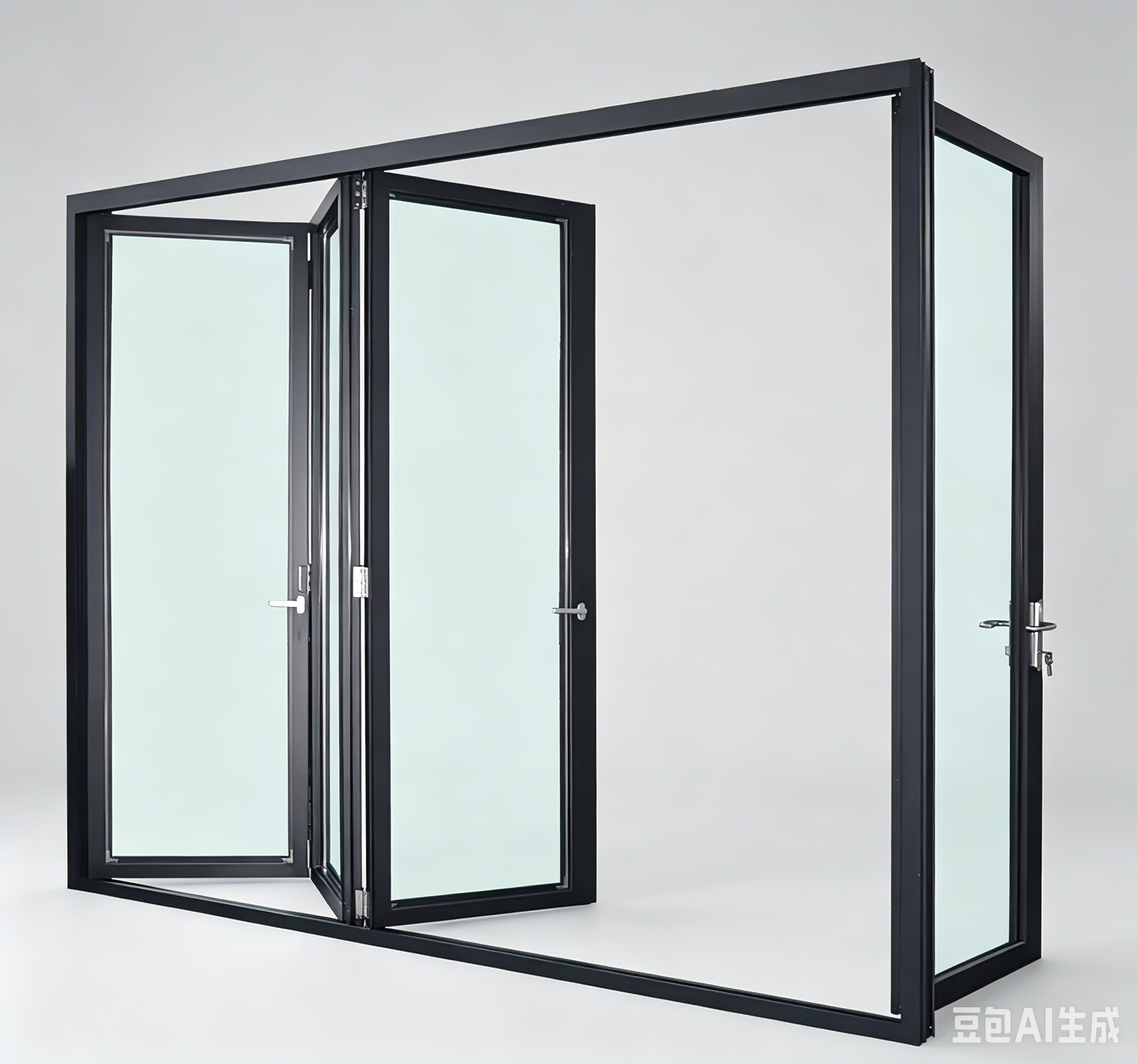

- Concertina folding design delivers full-width unobstructed openings
- Smooth top-hung roller system for light, quiet and easy operation
- High-grade 6063-T5 aluminium, corrosion resistant and low maintenance
- Multi-point locking and heavy-duty hinges for superior security
- Excellent weather sealing for air, water and wind resistance
- Fully compliant with Australian AS2047 and NCC building standards
Options & Customisation
- Frame: 100mm Non Thermally Broken / 100mm Thermally Broken
- Finishes: Powder coat, anodized, wood grain and dual-colour
- Glazing: Double / Triple glazing, Low-e, tinted and acoustic glass
- Panel configuration: 2–8 panels, left stack, right stack or bi-directional
- Hardware: Stainless steel hinges, rollers, handles and key locks
- Integrated fly screens and security screen accessories available
- Custom overall dimensions to suit residential and commercial openings
Applications
- Indoor-outdoor living areas, patios, verandas and alfresco spaces
- Modern residential homes, luxury villas and townhouses
- Cafés, restaurants, function centres and retail showrooms
- Coastal regions, suburban areas and energy-efficient projects
- New builds, home extensions, renovations and facade upgrades
- Spaces requiring maximum opening width and natural light
Technical Data by Model
Model 1: 100mm Non Thermally Broken
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Architectural Aluminium |
| Frame Depth | 100mm (Non Thermally Broken) |
| Glazing Thickness | 5mm ~ 12mm Single / Double Glazing |
| Max Panel Size (H x W) | 2400mm x 900mm |
| Max Panel Weight | 90kg |
| Hardware | Stainless steel hinges, rollers & multi-point lock |
| Surface Finish | Powder coating / Anodized / Wood grain |
Model 2: 100mm Thermally Broken
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Aluminium with Polyamide Thermal Break |
| Frame Depth | 100mm (Thermally Broken) |
| Glazing Thickness | 6mm ~ 16mm Double / Triple Glazing |
| Max Panel Size (H x W) | 2600mm x 900mm |
| Max Panel Weight | 110kg |
| Hardware | Reinforced premium stainless steel hardware set |
| Surface Finish | Powder coating / Anodized / Wood grain / Dual-colour |
Performance Ratings (AS2047) by Model
100mm Non Thermally Broken
Air Permeability
Class 4
Water Penetration
Class 4
Wind Load
AS/NZS 1170.2 High Wind Zone
Thermal Performance
Standard NCC Compliance
100mm Thermally Broken
Air Permeability
Class 4
Water Penetration
Class E750
Wind Load
AS/NZS 1170.2 Severe Wind Zone
Thermal Performance
Premium Energy Rating | NCC High Grade
