Key Features

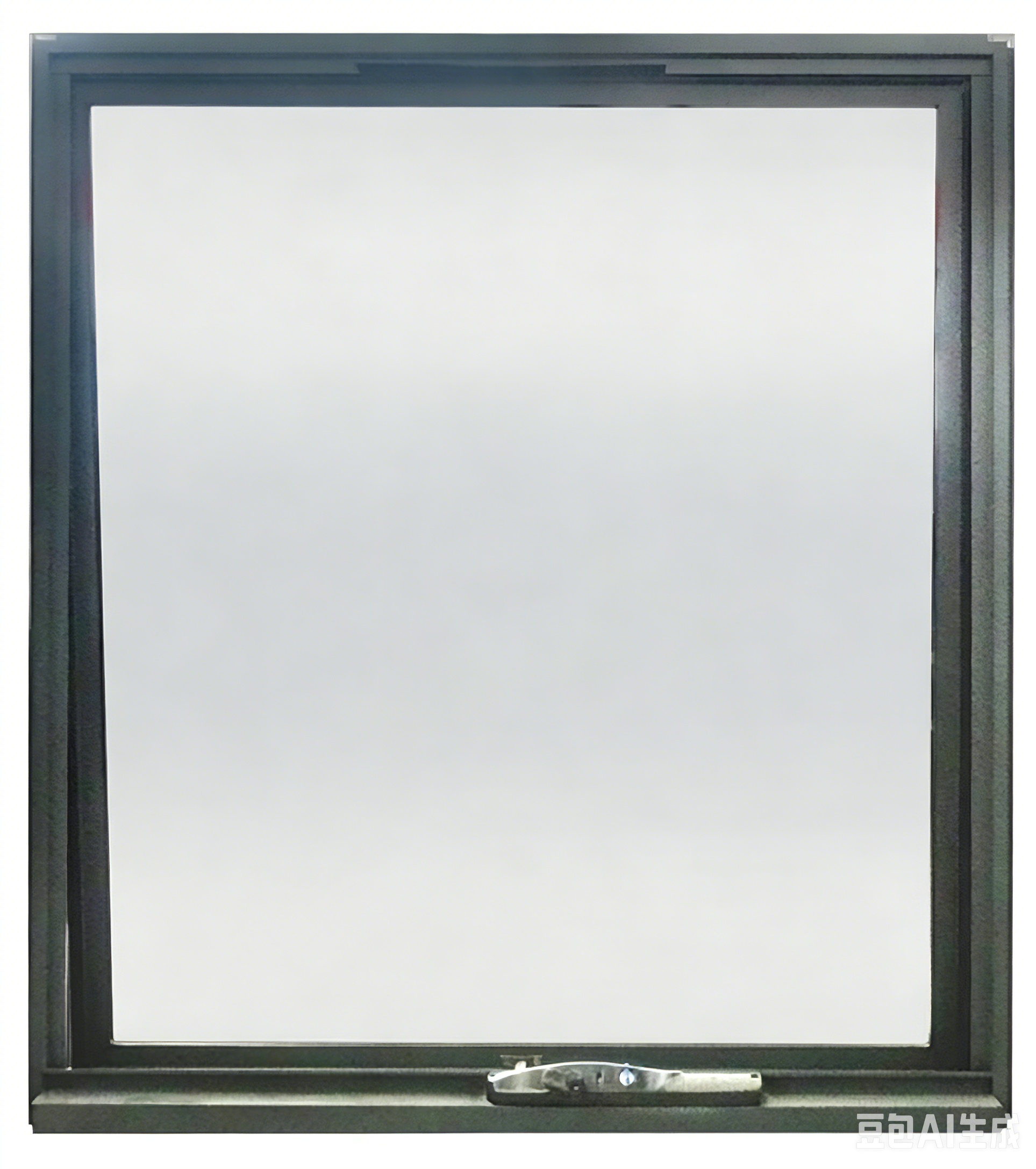

- Top-hung outward opening design for superior ventilation
- Excellent rain & weather protection for Australian climates
- Multiple frame depth selections for different project demands
- Robust 6063-T5 aluminium frame, long service life
- High air & water tightness performance
- Stainless steel hardware for corrosion resistance
- Fully compliant with Australian AS2047 building standards
Options & Customisation
- Frame types: 50mm Non-Thermal, 100mm Non-Thermal, 100mm Thermal Break
- Full range of architectural powder coat & anodized finishes
- Single / Double / Triple glazing, Low-e & tinted glass available
- Key lock, friction stay & multi-point locking hardware
- Fly screen and security screen accessories
- Custom sizes and group configurations
Applications
- Residential bedrooms, bathrooms, kitchens & living areas
- Apartments, townhouses and multi-unit dwellings
- Commercial buildings, offices and public facilities
- Coastal, suburban and inland Australian regions
- New builds, renovations and retrofit projects
Technical Data by Frame Model
Model 1: 50mm Non Thermally Broken
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Architectural Aluminium |
| Frame Depth | 50mm (Non Thermally Broken) |
| Glazing Thickness | 5mm ~ 10mm Single / Double Glazing |
| Max Dimension (H x W) | 2000mm x 1500mm |
| Hardware | Stainless steel friction stays & handles |
| Surface Finish | Powder coating / Anodized |
Model 2: 100mm Non Thermally Broken
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Architectural Aluminium |
| Frame Depth | 100mm (Non Thermally Broken) |
| Glazing Thickness | 5mm ~ 12mm Single / Double Glazing |
| Max Dimension (H x W) | 2400mm x 1800mm |
| Hardware | Heavy-duty stainless steel hardware |
| Surface Finish | Powder coating / Anodized / Wood grain |
Model 3: 100mm Thermally Broken
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Aluminium with Thermal Break |
| Frame Depth | 100mm (Thermally Broken) |
| Glazing Thickness | 6mm ~ 12mm Double / Triple Glazing |
| Max Dimension (H x W) | 2400mm x 1800mm |
| Hardware | Premium stainless steel hardware |
| Surface Finish | Powder coating / Anodized / Wood grain |
Performance Ratings (AS2047) by Model
50mm Non Thermally Broken
Air Permeability
Class 3
Water Penetration
Class 3
Wind Load
AS/NZS 1170.2 General Zone
Thermal Performance
Standard NCC Compliance
100mm Non Thermally Broken
Air Permeability
Class 4
Water Penetration
Class 4
Wind Load
AS/NZS 1170.2 High Wind Zone
Thermal Performance
Enhanced NCC Compliance
100mm Thermally Broken
Air Permeability
Class 4
Water Penetration
Class 4
Wind Load
AS/NZS 1170.2 Severe Wind Zone
Thermal Performance
Premium Energy Rating | NCC High Grade
