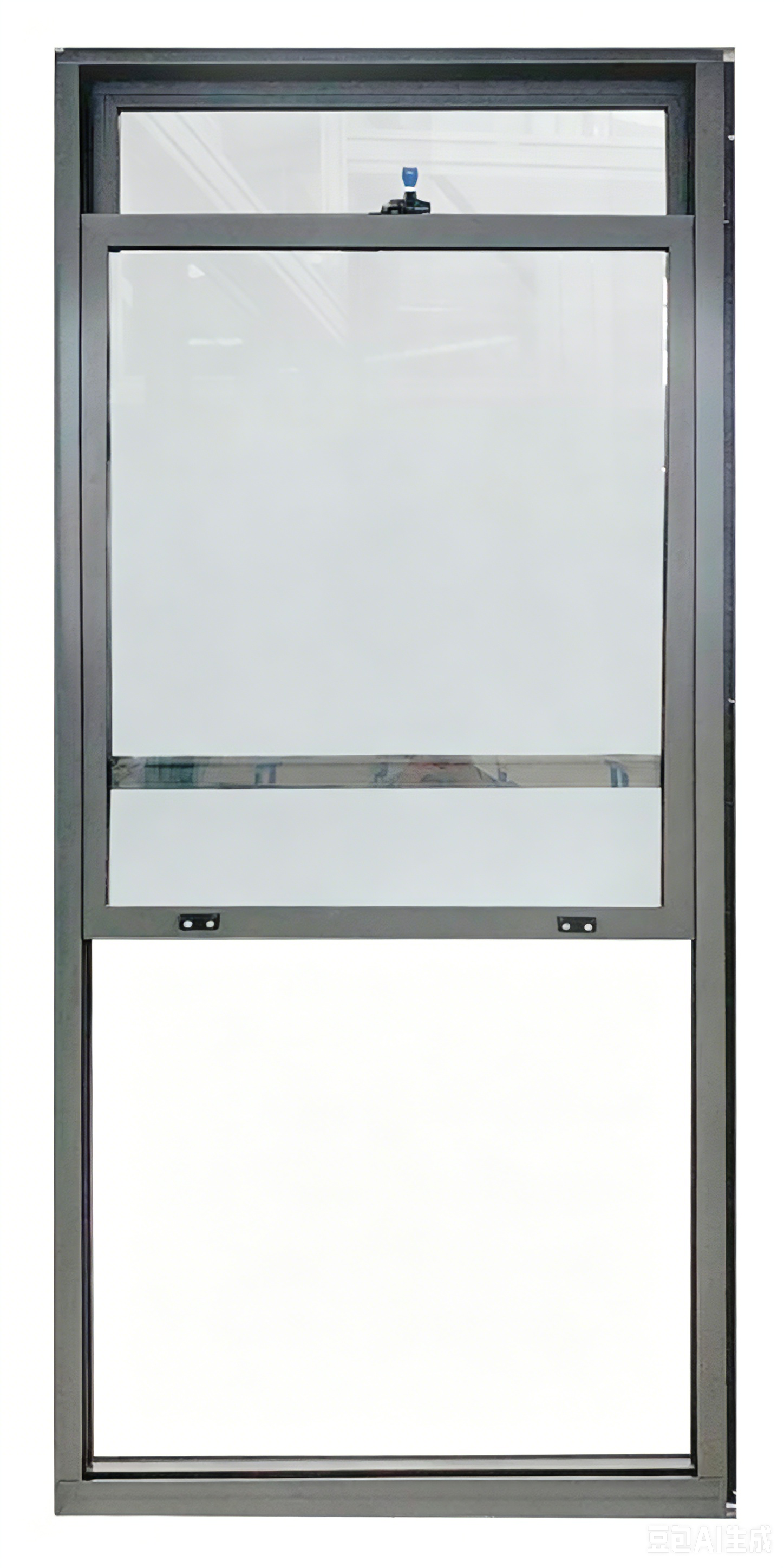

Key Features
- 100mm thermally broken aluminium frame for superior energy efficiency
- Two fully operable vertical sashes (top & bottom) for flexible ventilation
- Tilt-in sash design for easy internal cleaning of both sides
- Precision counterbalance system for smooth, effortless operation
- Robust 6063-T5 aluminium construction with polyamide thermal break
- Multi-point locking system for enhanced security & airtight sealing
- Premium weatherstripping for excellent water & wind resistance
- Fully compliant with Australian AS2047 & NCC energy standards
Options & Customisation
- Frame: 100mm Thermally Broken (polyamide thermal barrier)
- Finishes: Powder coat, anodized, wood grain & dual-color
- Glazing: Double/triple glazing, Low-e, tinted, acoustic glass
- Hardware: Premium stainless steel balances & locking handles
- Grilles: Georgian bar, simulated divided lite or no grid
- Screens: Integrated fly screens & security screen options
- Sizes: Custom heights/widths to suit residential & commercial openings
Applications
- Bedrooms, living rooms & hallways in premium residential homes
- Apartments, townhouses & multi-residential developments
- Heritage-style homes, colonial & modern architectural projects
- High-end commercial buildings, hotels & boutique retail spaces
- Coastal areas, high-wind zones & energy-efficient builds
- New constructions, renovations & luxury upgrade projects nationwide
Technical Data (100mm Thermally Broken)
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Aluminium with Polyamide Thermal Break |
| Frame Depth | 100mm (Thermally Broken) |
| Glazing Thickness | 6mm ~ 16mm Double / Triple Glazing |
| Max Sash Size (H x W) | 2100mm x 1200mm |
| Max Sash Weight | 100kg |
| Hardware | Stainless steel counterbalances & multi-point lock |
| Surface Finish | Powder coating / Anodized / Wood grain / Dual-color |
| Thermal Transmittance (Uw) | ≤ 1.8 W/(m²·K) |
Performance Ratings (AS2047)
Air Permeability
Class 4 (≤0.5 m³/h·m²)
Water Penetration
Class E750 (750Pa)
Wind Load
AS/NZS 1170.2 Severe Wind Zone (3000Pa)
Thermal Performance
Premium Energy Rating | NCC High Grade
