Key Features
- Uniform 100mm aluminium frame for solid structural performance
- Adjustable blade design for precise airflow, light & privacy control
- Two blade options: durable aluminium blade or transparent glass blade
- 6063-T5 high-grade aluminium frame, anti-corrosion & long service life
- Smooth pivot hardware for easy manual operation
- Excellent ventilation performance even during light rainfall
- Full compliance with Australian AS2047 building standards
Options & Customisation
- Frame: 100mm standard depth (non thermally broken)
- Blade type: Solid Aluminium Blade / Clear/Tinted Glass Blade
- Finishes: Powder coat, anodized, wood grain & dual-colour
- Blade angle adjustment: 0° to 90° full opening range
- Single unit, grouped multi-panel and continuous wall configurations
- Manual operating handles & locking function available
- Custom overall sizes to fit residential & commercial openings
Applications
- Bathrooms, laundries & wet areas requiring high ventilation
- Garages, verandas, carports and outdoor living spaces
- Industrial buildings, warehouses and workshop facilities
- Schools, public facilities, gyms and leisure centres
- Coastal areas, humid regions and hot climate zones
- New builds, renovations and ventilation upgrade projects
Technical Data by Model
Model 1: 100mm Frame – Aluminium Blade
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Architectural Aluminium |
| Frame Depth | 100mm (Non Thermally Broken) |
| Blade Material | Extruded Aluminium Blade |
| Max Unit Size (H x W) | 2400mm x 2400mm |
| Blade Thickness | 1.8mm |
| Hardware | Stainless steel pivot pins & operating handles |
| Surface Finish | Powder coating / Anodized / Wood grain |

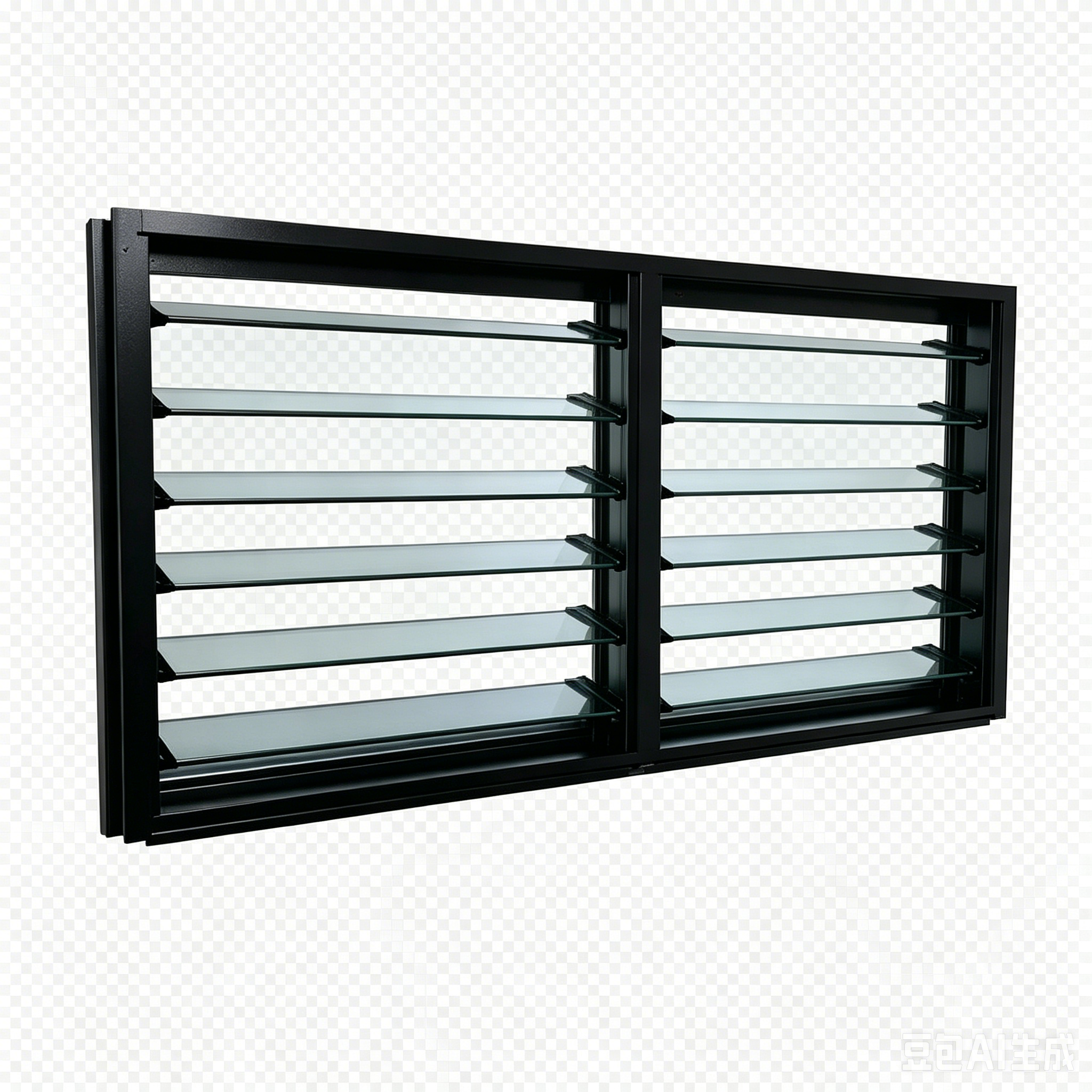

Model 2: 100mm Frame – Glass Blade
| Specification | Details |
|---|---|
| Frame Material | 6063-T5 Architectural Aluminium |
| Frame Depth | 100mm (Non Thermally Broken) |
| Blade Material | Toughened Safety Glass Blade |
| Max Unit Size (H x W) | 2100mm x 2100mm |
| Glass Thickness | 6mm / 8mm Toughened Glass |
| Hardware | Reinforced stainless steel pivot & brackets |
| Surface Finish | Powder coating / Anodized / Wood grain / Dual-colour |
Performance Ratings (AS2047) by Model
100mm Frame – Aluminium Blade
Air Permeability
Class 3
Water Penetration
Class 3
Wind Load
AS/NZS 1170.2 High Wind Zone
Thermal Performance
Standard NCC Compliance
100mm Frame – Glass Blade
Air Permeability
Class 3
Water Penetration
Class 3
Wind Load
AS/NZS 1170.2 High Wind Zone
Thermal Performance
Enhanced NCC Compliance
